APL5605

600mA Linear Regulator

APL5605 Features

* Low Dropout Voltage: 220mV (Typical) @ 600mA

* Low Quiescent Current: 140µA

* Enable/Shutdown Function

* Output Voltage / VSET Voltage: 1.6 times

* Stable with Low ESR Ceramic Capacitors

* Over-Temperature Protection

* Current-Limit Protectio

APL5605 General Description

The APL5605 is a low quiescent current and low dropout linear regulator which is designed to power a DC fan and delivers up to 600mA output current. The output voltage follows the 1.6 times of VSET voltage and typical dropout voltage is only 220mV (typical) at 600mA output current. The APL5605 with .

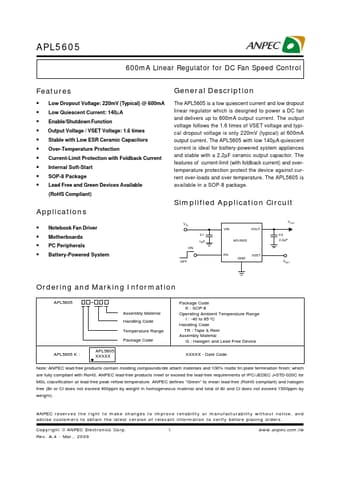

APL5605 Datasheet (355.47 KB)

Preview of APL5605 PDF

Datasheet Details

Part number:

APL5605

Manufacturer:

ANPEC

File Size:

355.47 KB

Description:

600ma linear regulator.
