APM2701AC - Dual-Channel MOSFET

APM2701AC Description

APM2701AC Dual Enhancement Mode MOSFET (N- and P-Channel) .
D1 S1 D2 G1 S2 G2. P-Channel -20V/-2A, RDS(ON)=90mΩ(typ.

APM2701AC Applications

* Power Management in Notebook Computer, Portable Equipment and Battery Powered Systems (5)S1 (2)S2 N-Channel MOSFET P-Channel MOSFET Ordering and Marking Information APM2701A Assembly Material Handling Code Temperature Range Package Code Package Code C : SOT-23-6 Operating Junction Tempe

📥 Download Datasheet

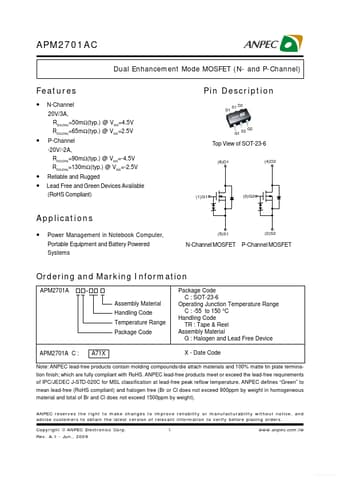

Preview of APM2701AC PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
APM2701AC
Manufacturer
ANPEC
File Size
251.23 KB
Datasheet
APM2701AC-ANPEC.pdf
Description
Dual-Channel MOSFET
