APM2701CG - Dual-Channel MOSFET

Product Overview

Anpec

Datasheet Details

Part number	APM2701CG
Manufacturer	Anpec
File Size	287.66 KB
Description	Dual-Channel MOSFET
Datasheet	APM2701CG Datasheet
Additional preview pages of the APM2701CG datasheet.

Product details

Description

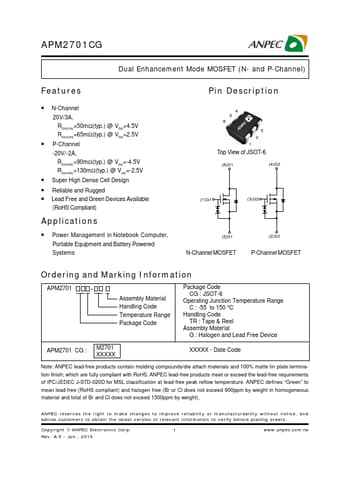

4 5 6 3 2 1 Top View of JSOT-6 (6)D1 (4)D2 (1)G1 (3)G2 (5)S1 N-Channel MOSFET (2)S2 P-Channel MOSFET Ordering and Marking Information APM2701 Assembly Material Handling Code Temperature Range Package Code Package Code CG : JSOT-6 Operating Junction Temperature Range C : -55 to 150 oC Handling Code TR : Tape & Reel Assembly Material G : Halogen and Lead Free Device APM2701 CG : M2701 XXXXX XXXXX - Date Code Note: ANPEC lead-free products contain molding compounds/die attach materia

Features

N-Channel 20V/3A, RDS(ON)=50mΩ(typ. ) @ V =4.5V GS RDS(ON)=65mΩ(typ. ) @ V =2.5V GS.
P-Channel -20V/-2A, RDS(ON)=90mΩ(typ. ) @ VGS=-4.5V RDS(ON)=130mΩ(typ. ) @ VGS=-2.5V.
Super High Dense Cell Design.
Reliable and Rugged.
Lead Free and Green Devices Available (RoHS Compliant).
