APM2704CG - Dual-Channel MOSFET

Product Overview

ANPEC

Datasheet Details

Part number	APM2704CG
Manufacturer	ANPEC
File Size	269.90 KB
Description	Dual-Channel MOSFET
Datasheet	APM2704CG Datasheet
Additional preview pages of the APM2704CG datasheet.

Product details

Description

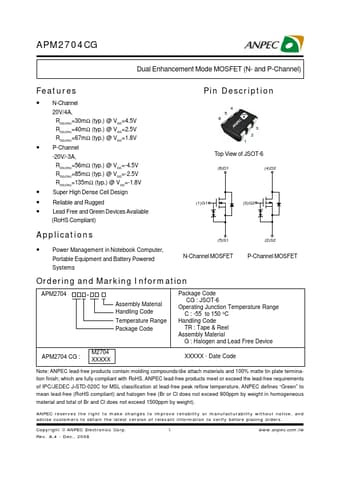

4 5 6 3 2 1 Top View of JSOT-6 (6)D1 (4)D2 (1)G1 (3)G2 Applications Power Management in Notebook Computer, Portable Equipment and Battery Powered Systems (5)S1 N-Channel MOSFET (2)S2 P-Channel MOSFET Ordering and Marking Information APM2704 APM2704 CG : Assembly Material Handling Code Temperature Range Package Code M2704 XXXXX Package Code CG : JSOT-6 Operating Junction Temperature Range C : -55 to 150 oC Handling Code TR : Tape & Reel Assembly Material G : Halogen and Le

Features

N-Channel 20V/4A, RDS(ON)=30mΩ (typ. ) @ VGS=4.5V RDS(ON)=40mΩ (typ. ) @ V =2.5V GS RDS(ON)=67mΩ (typ. ) @ V =1.8V GS.
P-Channel -20V/-3A, RDS(ON)=56mΩ (typ. ) @ VGS=-4.5V RDS(ON)=85mΩ (typ. ) @ VGS=-2.5V RDS(ON)=135mΩ (typ. ) @ VGS=-1.8V.
Super High Dense Cell Design.
Reliable and Rugged.
Lead Free and Green Devices Available (RoHS Compliant) Pin.
