APM2700C - Dual-Channel MOSFET

Product Overview

📥 Download Datasheet

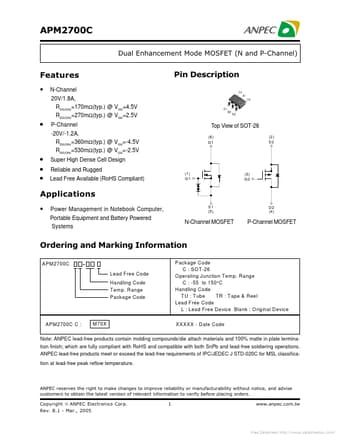

Datasheet preview – APM2700C

Datasheet Details

Part number APM2700C
Manufacturer Anpec
File Size 252.16 KB
Description Dual-Channel MOSFET
Datasheet download datasheet APM2700C Datasheet
Additional preview pages of the APM2700C datasheet.

Product details

Description

P-Channel -20V/-1.2A, RDS(ON)=360mΩ(typ.) @ VGS=-4.5V RDS(ON)=530mΩ(typ.) @ VGS=-2.5V Top View of SOT-26 (6) D1 (2) S2 Super High Dense Cell Design Reliable and Rugged Lead Free Available (RoHS Compliant) (1) G1 (3) G2 Applications Power Management in Notebook Computer, Portable Equipment and Battery Powered Systems S1 (5) D2 (4) N-Channel MOSFET P-Channel MOSFET Ordering and Marking Information APM2700C Lead Free Code Handling Code Tem

Features
