APM2040NU Datasheet, mosfet equivalent, Anpec

APM2040NU Features

  • Mosfet
  • 20V/10A, RDS(ON)=28mΩ (typ.) @ VGS=10V RDS(ON)=35mΩ (typ.) @ VGS=4.5V RDS(ON)=55mΩ (typ.) @ VGS=2.5V
  • Super High Dense Cell Design
  • Reliable and Rugged

PDF File Details

Part number:

APM2040NU

Manufacturer:

Anpec

File Size:

160.57kb

Download:

📄 Datasheet

Description:

N-channel mosfet. GD S Top View of TO-252 D G S N-Channel MOSFET Ordering and Marking Information APM2040N Assembly Material Handling Code Temperat

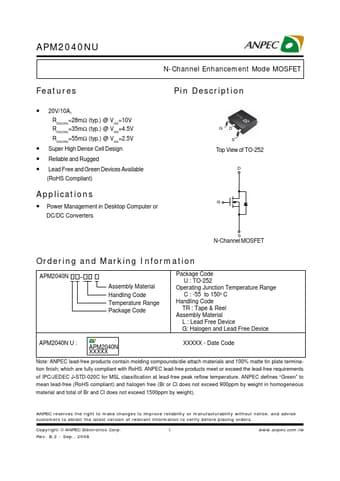

Datasheet Preview: APM2040NU 📥 Download PDF (160.57kb)
Page 2 of APM2040NU Page 3 of APM2040NU

APM2040NU Application

  • Applications
  • Power Management in Desktop Computer or DC/DC Converters Pin Description GD S Top View of TO-252 D G S N-Channel MOSFET Or
