APM2701ACC-TRG - Dual-Channel MOSFET

APM2701ACC-TRG Description

APM2701ACC-TRG www.VBsemi.com APM2701ACC-TRG N- and P-Channel 20V (D-S) MOSFET PRODUCT SUMMARY N-Channel P-Channel VDS (V) 20 - 20 RDS(on) (Ω) 0.

APM2701ACC-TRG Features

* Halogen-free According to IEC 61249-2-21 Definition
* TrenchFET® Power MOSFET
* 100 % Rg Tested
* Compliant to RoHS Directive 2002/95/EC TSOP-6 Top View G1 1 6 D1 3 mm S2 2 5 S1 G2 3 4 D2 2.85 mm D1 S2 G2 G1 S1 N-Channel MOSFET D2 P-Channel MOSFET

📥 Download Datasheet

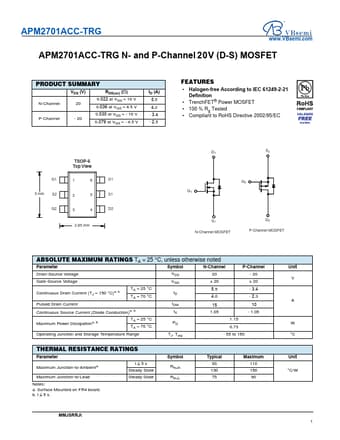

Preview of APM2701ACC-TRG PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
APM2701ACC-TRG
Manufacturer
VBsemi
File Size
408.19 KB
Datasheet
APM2701ACC-TRG-VBsemi.pdf
Description
Dual-Channel MOSFET
