APW8824

1A Synchronous Buck Regulator

APW8824 Features

* 1A Output Current Wide 2.7V~5.5V Input Voltage Fixed 1.5MHz Switching Frequency Low Dropout Operating at 100% duty cycle Low 25µA Quiescent Current Integrate Synchronous Rectifier 0.6V Low Reference Voltage

APW8824 General Description

The APW8824 is a high efficiency monolithic synchronous buck regulator. APW8824 operates with a constant 1.5MHz switching frequency and using the inductor current as a controlled quantity in the current mode architecture. The 2.7V to 5.5V input voltage range makes the APW8824 ideally suited for sing.

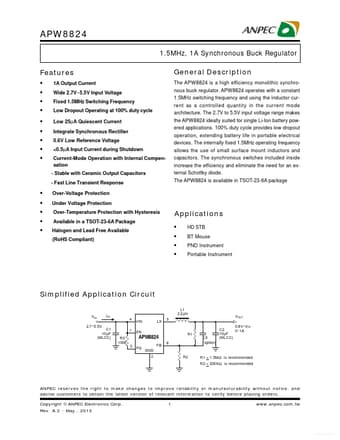

APW8824 Datasheet (537.58 KB)

Preview of APW8824 PDF

Datasheet Details

Part number:

APW8824

Manufacturer:

ANPEC

File Size:

537.58 KB

Description:

1a synchronous buck regulator.
