HTPT66 High Temperature Power Toroids

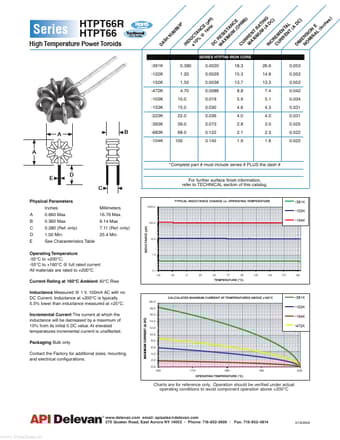

High Temperature Power Toroids DA SH NU M Series -391K -122K -152K -472K -103K -153K -223K -393K -683K -104K 0.390 1.20 1.50 4.70 10.0 15.0 22.0 39.0 68.0 100 A A B Complete part # must include series # PLUS the dash # E D C INDUCTANCE (µH) Physical Parameters Inches A 0.660 Max. B 0.360 Max. C 0.280 (Ref. only) D 1.00 Min. E See Characteristics Table TYPICAL INDUCTANCE CHANGE vs. OPERATING TEMPERATURE Millimeters 16.76 Max. 9.14 Max . 7.11 (Ref. only) 25.4 Min. 1000.0 100.0.

HTPT66 Datasheet (463.46 KB)

HTPT66 Datasheet Preview — Preview of HTPT66 PDF

Datasheet Details

Part number:

HTPT66

Manufacturer:

API Delevan

File Size:

463.46 KB

Description:

High temperature power toroids.
