HTP4A60H

TRIAC

HTP4A60H Features

*  Repetitive Peak Off-State Voltage : 600V/800V  R.M.S On

* State Current (IT(RMS) = 4A)  Gate Trigger Current : 25mA  High commutation capability. VDRM = 600V/800V IT(RMS) = 4 A ITSM = 42 A IGT = 25mA Symbol TO-220 Applications General purpose of AC switching, heating control, motor cont

HTP4A60H General Description

Semihow’s standard TRIAC product is a glass passivated device, has a high commutative performance, stable gate triggering level to temperature and high off state voltage. It is generally suitable for power and phase control in ac application T1 T2 G Absolute Maximum Ratings Symbol Parameter VDR.

HTP4A60H Datasheet (357.85 KB)

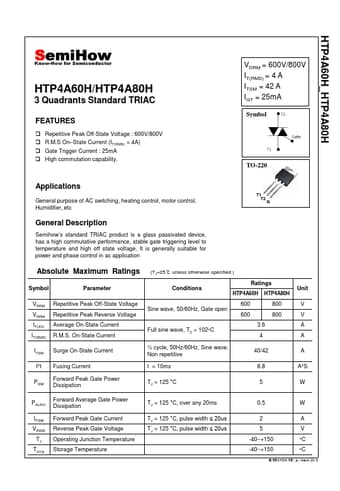

Preview of HTP4A60H PDF

Datasheet Details

Part number:

HTP4A60H

Manufacturer:

SemiHow

File Size:

357.85 KB

Description:

Triac.
