HTP16A60H

TRIAC

HTP16A60H Features

*  Repetitive Peak Off-State Voltage : 600V/800V  R.M.S On

* State Current (IT(RMS) = 16A)  Gate Trigger Current : 35mA  High commutation capability. VDRM = 600V/800V IT(RMS) = 16 A ITSM = 168 A IGT = 35mA Symbol TO-220 Applications General purpose of AC switching, heating control, motor c

HTP16A60H General Description

Semihow’s standard TRIAC product is a glass passivated device, has a high commutative performance, stable gate triggering level to temperature and high off state voltage. It is generally suitable for power and phase control in ac application Absolute Maximum Ratings Symbol Parameter VDRM VRRM IT.

HTP16A60H Datasheet (395.16 KB)

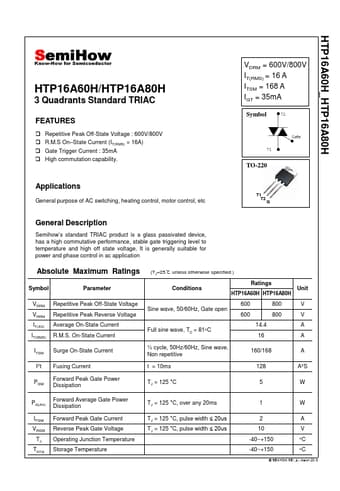

Preview of HTP16A60H PDF

Datasheet Details

Part number:

HTP16A60H

Manufacturer:

SemiHow

File Size:

395.16 KB

Description:

Triac.
