HTP16A80H, HTP16A60H Datasheet - SemiHow

HTP16A80H TRIAC

Semihow’s standard TRIAC product is a glass passivated device, has a high commutative performance, stable gate triggering level to temperature and high off state voltage. It is generally suitable for power and phase control in ac application Absolute Maximum Ratings Symbol Parameter VDRM VRRM IT.

HTP16A80H Features

*  Repetitive Peak Off-State Voltage : 600V/800V  R.M.S On

* State Current (IT(RMS) = 16A)  Gate Trigger Current : 35mA  High commutation capability. VDRM = 600V/800V IT(RMS) = 16 A ITSM = 168 A IGT = 35mA Symbol TO-220 Applications General purpose of AC switching, heating control, motor c

HTP16A60H-SemiHow.pdf

This datasheet PDF includes multiple part numbers: HTP16A80H, HTP16A60H. Please refer to the document for exact specifications by model.

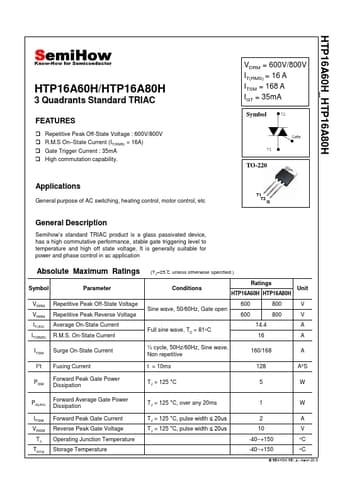

HTP16A80H Datasheet Preview Page 2 HTP16A80H Datasheet Preview Page 3

Datasheet Details

Part number:

HTP16A80H, HTP16A60H

Manufacturer:

SemiHow

File Size:

395.16 KB

Description:

Triac.

Note:

This datasheet PDF includes multiple part numbers: HTP16A80H, HTP16A60H.
Please refer to the document for exact specifications by model.
