HTPT66R, HTPT66 Datasheet - API Delevan

HTPT66R High Temperature Power Toroids

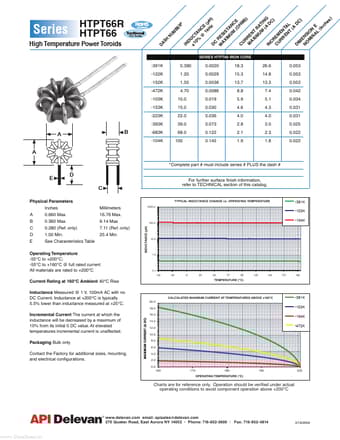

High Temperature Power Toroids DA SH NU M Series -391K -122K -152K -472K -103K -153K -223K -393K -683K -104K 0.390 1.20 1.50 4.70 10.0 15.0 22.0 39.0 68.0 100 A A B Complete part # must include series # PLUS the dash # E D C INDUCTANCE (µH) Physical Parameters Inches A 0.660 Max. B 0.360 Max. C 0.280 (Ref. only) D 1.00 Min. E See Characteristics Table TYPICAL INDUCTANCE CHANGE vs. OPERATING TEMPERATURE Millimeters 16.76 Max. 9.14 Max . 7.11 (Ref. only) 25.4 Min. 1000.0 100.0.

HTPT66_APIDelevan.pdf

HTPT66R Datasheet Preview — This datasheet PDF includes multiple part numbers: HTPT66R, HTPT66. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

HTPT66R, HTPT66

Manufacturer:

API Delevan

File Size:

463.46 KB

Description:

High temperature power toroids.

Note:

This datasheet PDF includes multiple part numbers: HTPT66R, HTPT66.
Please refer to the document for exact specifications by model.
