AP100N03D Datasheet, mosfet equivalent, APM

AP100N03D Features

  • Mosfet VDS = 30V ID =100 A RDS(ON) < 5.5mΩ @ VGS=10V (Type:3.6mΩ) Only Application Battery protection Use Load switch Uninterruptible power supply times Package Marking and Ordering Info

PDF File Details

Part number:

AP100N03D

Manufacturer:

APM

File Size:

1.68MB

Download:

📄 Datasheet

Description:

30v n-channel enhancement mode mosfet. AP100N03D 30V N-Channel Enhancement Mode MOSFET The AP100N03D uses advanced trench technology to provide excellent RDS(ON), low gat

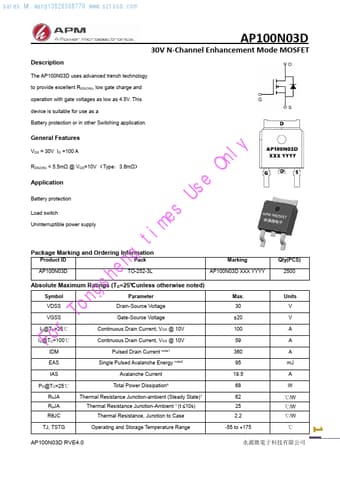

Datasheet Preview: AP100N03D 📥 Download PDF (1.68MB)
Page 2 of AP100N03D Page 3 of AP100N03D
