AP28N50F Datasheet - APM

500V N-Channel Enhancement Mode MOSFET

AP28N50F Features

* VDS = 500V ID =28A RDS(ON) < 260mΩ @ VGS=10V （Type：195mΩ） Application Uninterruptible Power Supply(UPS) Power Factor Correction (PFC) Package Marking and Ordering Information Product ID Pack Marking AP28N50F TO-220F-3L AP28N50F XXX YYYY AP28N50P TO-220-3L AP28N50P XXX YYYY Absolute Maximu

AP28N50F General Description

The AP28N50F/P is silicon N-channel Enhanced VDMOSFETs, is obtained by the self-aligned planar Technology which reduce the conduction loss, improve switching performance and enhance the avalanche energy. The transistor can be used in various power switching circuit for system miniaturization and hig.

AP28N50F Datasheet (1.90 MB)

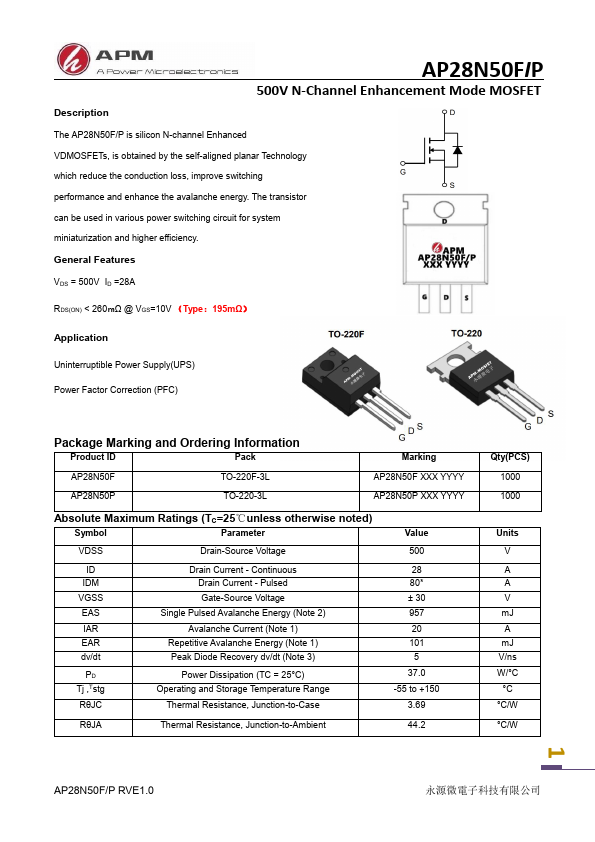

Preview of AP28N50F PDF

Datasheet Details

Part number:

AP28N50F

Manufacturer:

APM

File Size:

1.90 MB

Description:

500v n-channel enhancement mode mosfet.

📁 Related Datasheet

AP28N50P 500V N-Channel Enhancement Mode MOSFET (APM)

AP2805 500mA High-side Power Distribution Switch (BCD)

AP2810 1.0A High-side Power Distribution Switch (BCD)

AP2815 1.5A High-side Power Distribution Switch (BCD)

AP2820 High-side Power Distribution Switch (BCD)

AP2820 2.0A HIGH-SIDE POWER DISTRIBUTION SWITCH (DIODES)

AP2821 High-side Power Distribution Switch (BCD)

AP2822 0.5A to 2.0A High-side Power Distribution Switches (BCD)

AP2822 0.5A to 2.0A HIGH-SIDE POWER DISTRIBUTION SWITCHES (DIODES)

AP2851GO N- and P-Channel MOSFET (VBsemi)

Stock and price

part
STMicroelectronics
TYN410RG
0 In Stock
Qty : 2000 units
Unit Price : $0.58

TAGS

AP28N50F 500V N-Channel Enhancement Mode MOSFET APM

Image Gallery

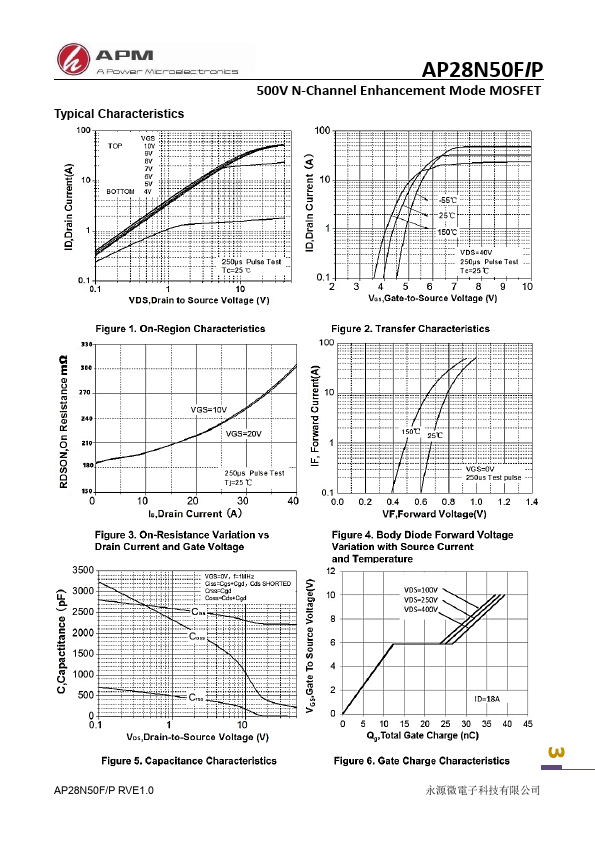

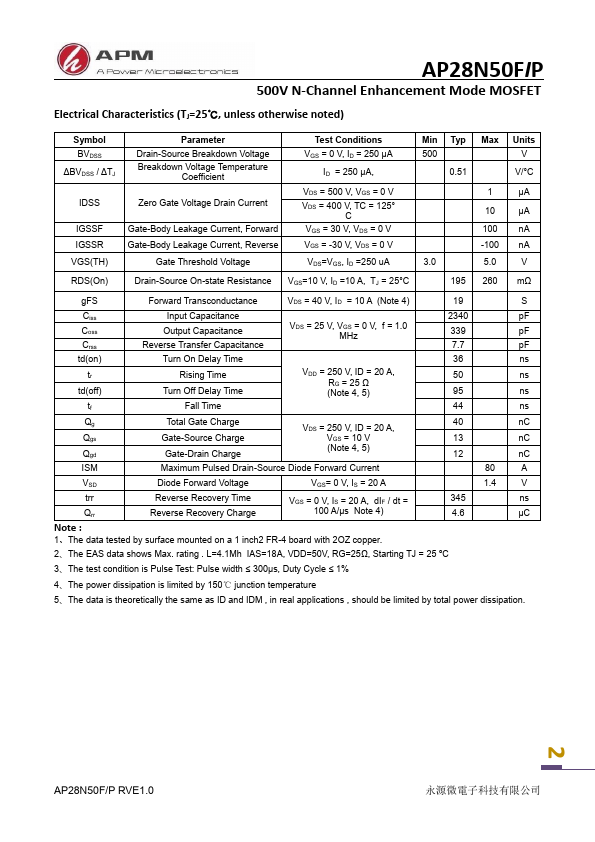

AP28N50F Datasheet Preview Page 2 AP28N50F Datasheet Preview Page 3
