AP30N02BF Datasheet - APM

20V N-Channel Enhancement Mode MOSFET

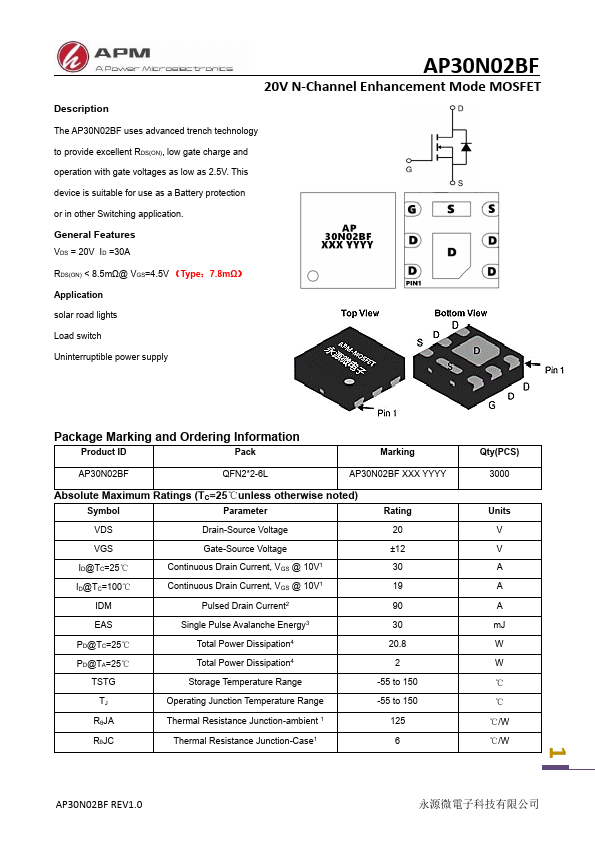

AP30N02BF Features

* VDS = 20V ID =30A RDS(ON) < 8.5mΩ@ VGS=4.5V （Type：7.8mΩ） Application solar road lights Load switch Uninterruptible power supply Package Marking and Ordering Information Product ID Pack Marking AP30N02BF QFN2

* 2-6L AP30N02BF XXX YYYY Absolute Maximum Ratings (TC=25℃unless otherwise note

AP30N02BF General Description

AP30N02BF 20V N-Channel Enhancement Mode MOSFET The AP30N02BF uses advanced trench technology to provide excellent RDS(ON), low gate charge and operation with gate voltages as low as 2.5V. This device is suitable for use as a Battery protection or in other Switching application. General Featur.

AP30N02BF Datasheet (1.11 MB)

AP30N02BF Datasheet Preview — Preview of AP30N02BF PDF

Datasheet Details

Part number:

AP30N02BF

Manufacturer:

APM

File Size:

1.11 MB

Description:

20v n-channel enhancement mode mosfet.
