AP30N06NF Datasheet - APM

datasheet Preview Page 1 from Datasheet4u.com

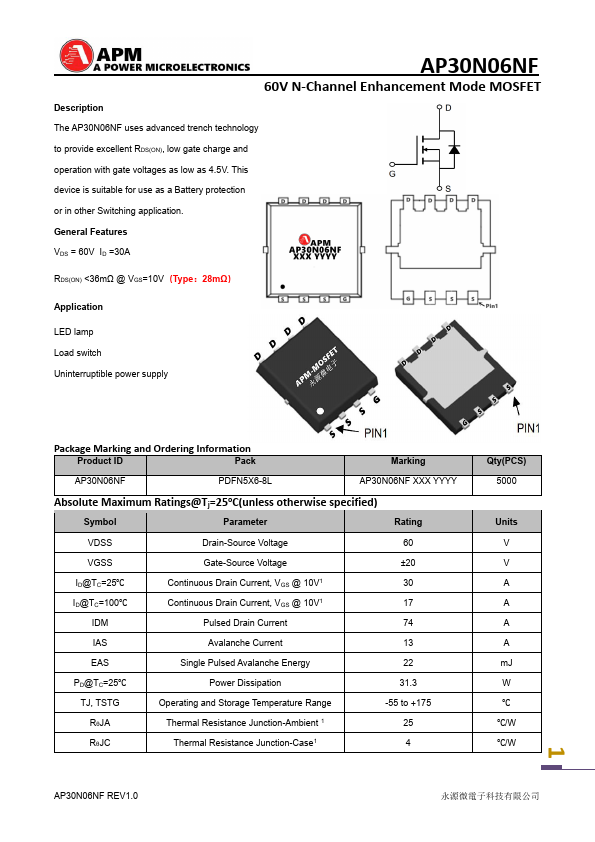

AP30N06NF 60V N-Channel Enhancement Mode MOSFET

AP30N06NF 60V N-Channel Enhancement Mode MOSFET .
The AP30N06NF uses advanced trench technology to provide excellent RDS(ON), low gate charge and operation with gate voltages as low as 4.

AP30N06NF-APM.pdf

AP30N06NF Datasheet Preview — Preview of AP30N06NF PDF

Datasheet Details

Part number:

AP30N06NF

Manufacturer:

APM

File Size:

762.36 KB

Description:

60V N-Channel Enhancement Mode MOSFET

Features

* VDS = 60V ID =30A RDS(ON)

Applications

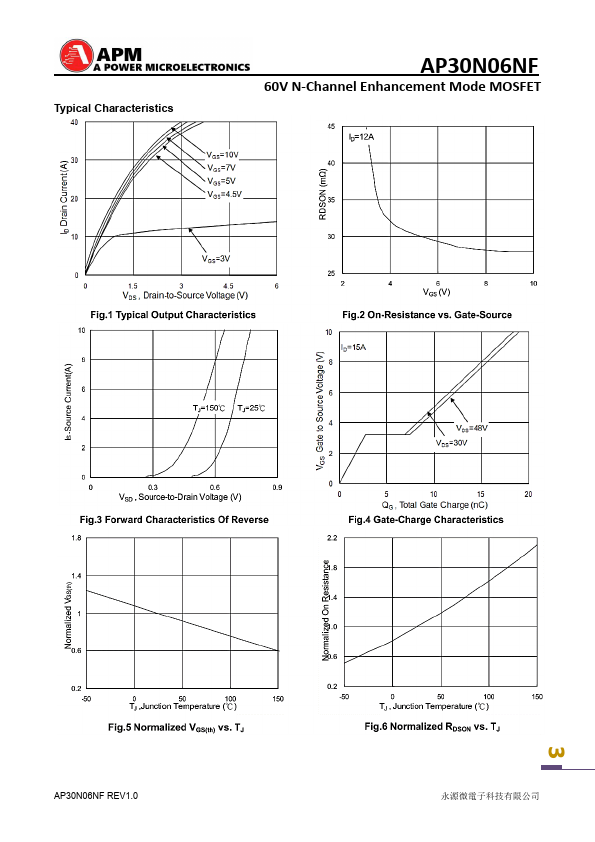

* , should be limited by total power dissipation. 2 AP30N06NF REV1.0 Typical Characteristics AP30N06NF 60V N-Channel Enhancement Mode MOSFET 3 AP30N06NF REV1.0 AP30N06NF 60V N-Channel Enhancement Mode MOSFET 4 AP30N06NF REV1.0 AP30N06NF 60V N-Channel Enhancement Mode MOSFET Package Mec
