APL2000-R Datasheet, Pll, ASB

✔ APL2000-R Features

∙ +5 dBm Output Level at 2000 MHz ∙ Channel Step Size : 5000 kHz ∙ 2nd Harmonic : < -30 dBc ∙ Spurious Level : < -70 dBc ∙ Lock Time : < 10 ms ∙ 35 mA Current Consumption

PDF File Details

ASB manufacturer logo

Part number:

APL2000-R

Manufacturer:

ASB

File Size:

67.31kb

Download:

📄 Datasheet

Description:

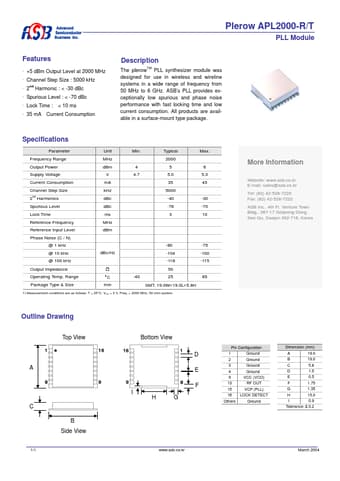

Pll. The plerowTM PLL synthesizer module was designed for use in wireless and wireline systems in a wide range of frequency from 50 MHz to

📥 Download PDF (67.31kb)
