APL2030 - PLL

ASB

The APL2030 by ASB is a PLL. Below is the official datasheet preview.

📥 Download Datasheet

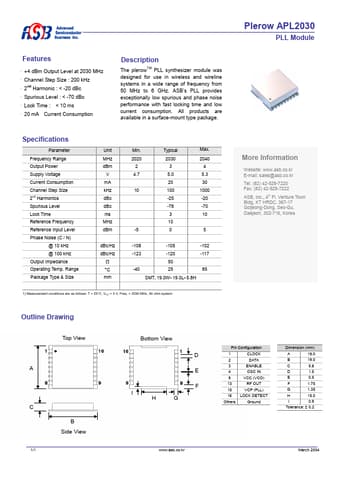

APL2030 PLL by ASB - Datasheet Preview — Official preview page of the APL2030 PLL datasheet (ASB).

Datasheet Details

Part number	APL2030
Manufacturer	ASB
File Size	134.11 KB
Description	PLL
Datasheet	APL2030-ASB.pdf
Additional preview pages of the APL2030 datasheet.

APL2030 Product details

Description

The plerowTM PLL synthesizer module was designed for use in wireless and wireline systems in a wide range of frequency from 50 MHz to 6 GHz.

Features

+4 dBm Output Level at 2030 MHz.
Channel Step Size : 200 kHz.
2nd Harmonic : < -20 dBc.
Spurious Level : < -70 dBc.
Lock Time : < 10 ms.
20 mA Current Consumption.
