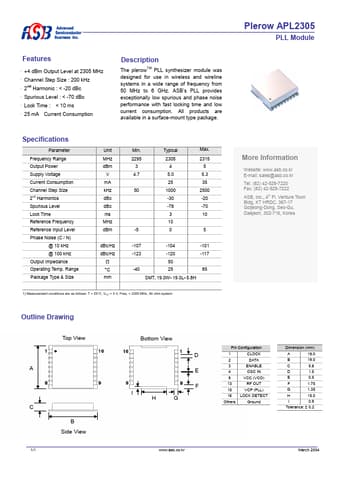

APL2305, PLL Module

.
The plerowTM PLL synthesizer module was designed for use in wireless and wireline systems in a wide range of frequency from 50 MHz to 6 GHz.

Datasheet Details

Part number:

APL2305

Manufacturer:

ASB

File Size:

134.41 KB

Description:

PLL Module

Features

* +4 dBm Output Level at 2305 MHz
* Channel Step Size : 200 kHz
* 2nd Harmonic : < -20 dBc
* Spurious Level : < -70 dBc
* Lock Time : < 10 ms
