AT17F16

FPGA Configuration Flash Memory

ATMEL Corporation

AT17F16 Features

* DATASHEET

* Programmable 16,777,216 x 1-bit Serial Memories Designed to Store Configuration Programs for Field Programmable Gate Arrays (FPGAs)

* 3.3V Output Capability

* 5.0V Tolerant I/O Pins

* Program Support using the Atmel ATDH2200E System, ATDH2225 ISP Cable, or Third-party P

AT17F16 General Description

The Atmel® AT17F16 In-System Programmable Configuration PROMs (Configurators) provide an easy-to-use, cost-effective configuration memory solutions for FPGAs. The AT17F16 is packaged in the 8-pad LAP and 20-lead PLCC packages (Table 1). The AT17F16 uses a simple serial-access procedure to configure.

AT17F16 Datasheet (440.77 KB)

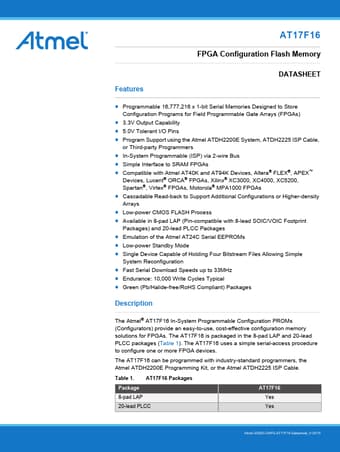

AT17F16 Datasheet Preview — Preview of AT17F16 PDF

Datasheet Details

Part number:

AT17F16

Manufacturer:

ATMEL Corporation

File Size:

440.77 KB

Description:

Fpga configuration flash memory.
