AT17F32 - FPGA Configuration Flash Memory

ATMEL Corporation

The AT17F32 by ATMEL Corporation is a FPGA Configuration Flash Memory. Below is the official datasheet preview.

📥 Download Datasheet

AT17F32 FPGA Configuration Flash Memory by ATMEL Corporation - Datasheet Preview — Official preview page of the **AT17F32** FPGA Configuration Flash Memory datasheet (ATMEL Corporation).

Datasheet Details

Part number	AT17F32
Manufacturer	ATMEL Corporation
File Size	168.58 KB
Description	FPGA Configuration Flash Memory
Datasheet	AT17F32_ATMELCorporation.pdf

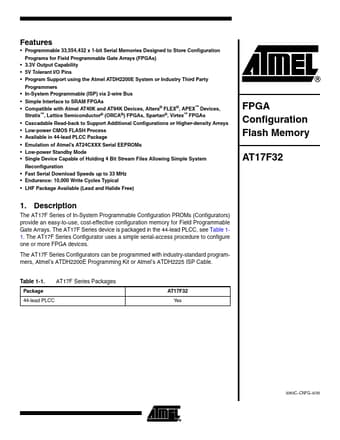

Additional preview pages of the AT17F32 datasheet.

AT17F32 Product details

Description

The AT17F Series of In-System Programmable Configuration PROMs (Configurators) provide an easy-to-use, cost-effective configuration memory for Field Programmable Gate Arrays.

Features

Programmable 33,554,432 x 1-bit Serial Memories Designed to Store Configuration Programs for Field Programmable Gate Arrays (FPGAs).
3.3V Output Capability.
5V Tolerant I/O Pins.
Program Support using the Atmel ATDH2200E System or Industry Third Party Programmers.
In-System Programmable (ISP) via 2-wire Bus.
Simple Interface to SRAM FPGAs.
Compatible with Atmel AT40K and AT94K Devices, Altera® FLEX®, APEX™ Devices, Stratix™, Lattice.
