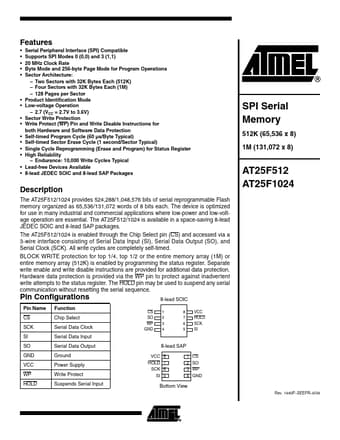

AT25F1024 Datasheet Preview — Preview of AT25F1024 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: AT25F1024
Manufacturer: ATMEL Corporation
File Size: 235.49 KB
Datasheet: AT25F1024_ATMELCorporation.pdf
Description: SPI Serial Memory

AT25F1024 Product details

Description

The AT25F512/1024 provides 524,288/1,048,576 bits of serial reprogrammable Flash memory organized as 65,536/131,072 words of 8 bits each.

Features

Serial Peripheral Interface (SPI) Compatible.
Supports SPI Modes 0 (0,0) and 3 (1,1).
20 MHz Clock Rate.
Byte Mode and 256-byte Page Mode for Program Operations.
Sector Architecture:.
Two Sectors with 32K Bytes Each (512K).
Four Sectors with 32K Bytes Each (1M).
128 Pages per Sector.
Product Identification Mode.
Low-voltage Operation.
2.7 (VCC = 2.7V to 3.6V).
Sector Write Protection.
