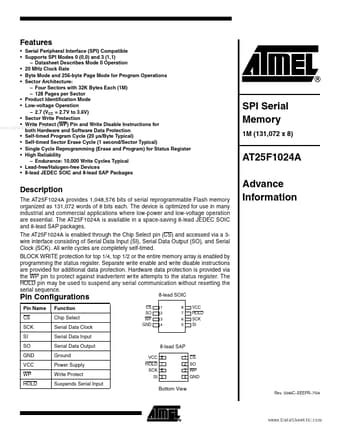

AT25F1024A Datasheet Preview — Preview of AT25F1024A PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: AT25F1024A
Manufacturer: ATMEL Corporation
File Size: 340.80 KB
Datasheet: AT25F1024A_ATMELCorporation.pdf
Description: SPI Serial Memory

AT25F1024A Product details

Description

The AT25F1024A provides 1,048,576 bits of serial reprogrammable Flash memory organized as 131,072 words of 8 bits each.

Features

Serial Peripheral Interface (SPI) Compatible.
Supports SPI Modes 0 (0,0) and 3 (1,1).
Datasheet Describes Mode 0 Operation.
20 MHz Clock Rate.
Byte Mode and 256-byte Page Mode for Program Operations.
Sector Architecture:.
Four Sectors with 32K Bytes Each (1M).
128 Pages per Sector.
Product Identification Mode.
Low-voltage Operation.
2.7 (VCC = 2.7V to 3.6V).
Sector Write Protection.
