AT25F2048 Datasheet - ATMEL Corporation

AT25F2048, SPI Serial Memory 2M (262/144 x 8)

.
The AT25F2048 provides 2,097,152 bits of serial reprogrammable Flash memory organized as 262,144 words of 8 bits each.

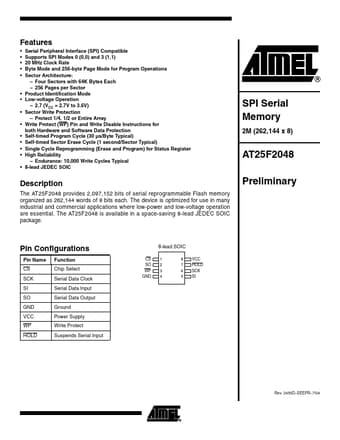

datasheet Preview Page 1 from Datasheet4u.com

AT25F2048_ATMELCorporation.pdf

AT25F2048 Datasheet Preview — Preview of AT25F2048 PDF

Datasheet Details

Part number:

AT25F2048

Manufacturer:

ATMEL Corporation

File Size:

257.26 KB

Description:

SPI Serial Memory 2M (262/144 x 8)

Features

* Serial Peripheral Interface (SPI) Compatible Supports SPI Modes 0 (0,0) and 3 (1,1) 20 MHz Clock Rate Byte Mode and 256-byte Page Mode for Program Operations Se

Applications

* where low-power and low-voltage operation are essential. The AT25F2048 is available in a space-saving 8-lead JEDEC SOIC package. Pin Configurations Pin Name CS SCK SI SO GND VCC WP HOLD Function Chip Select Serial Data Clock Serial Data Input Serial Data Output Ground Power Supply Write Protect Sus
