AT89C51ID2 - 8-bit Flash Microcontroller

ATMEL Corporation

The AT89C51ID2 by ATMEL Corporation is a 8-bit Flash Microcontroller. Below is the official datasheet preview.

📥 Download Datasheet

AT89C51ID2 8-bit Flash Microcontroller by ATMEL Corporation - Datasheet Preview — Official preview page of the AT89C51ID2 8-bit Flash Microcontroller datasheet (ATMEL Corporation).

Datasheet Details

Part number	AT89C51ID2
Manufacturer	ATMEL Corporation
File Size	1.00 MB
Description	8-bit Flash Microcontroller
Datasheet	AT89C51ID2_ATMELCorporation.pdf

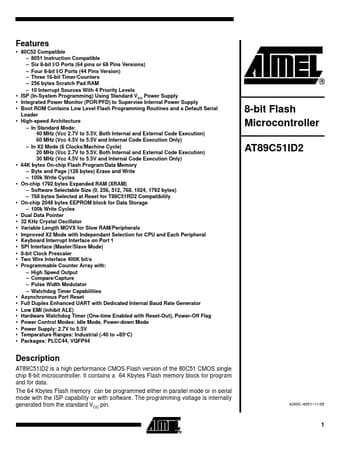

Additional preview pages of the AT89C51ID2 datasheet.

AT89C51ID2 Product details

Description

AT89C51ID2 is a high performance CMOS Flash version of the 80C51 CMOS single chip 8-bit microcontroller. 8051 11/05 1 The AT89C51ID2 retains all

Features

80C52 Compatible.
8051 Instruction Compatible.
Six 8-bit I/O Ports (64 pins or 68 Pins Versions).
Four 8-bit I/O Ports (44 Pins Version).
Three 16-bit Timer/Counters.
256 bytes Scratch Pad RAM.
10 Interrupt Sources With 4 Priority Levels.
ISP (In-System Programming) Using Standard VCC Power Supply.
Integrated Power Monitor (POR/PFD) to Supervise Internal Power Supply.
Boot ROM Contains Low Level Flash Prog.
