ATA5558 - 1 kbit R/W IDIC

ATA5558 Description

www.DataSheet4U.com .
The ATA5558 is a contactless, two-terminal R/W-Identification IC (IDIC®) for multi- or single tag applications in the low frequency (≈ 125 kHz) range.

ATA5558 Features

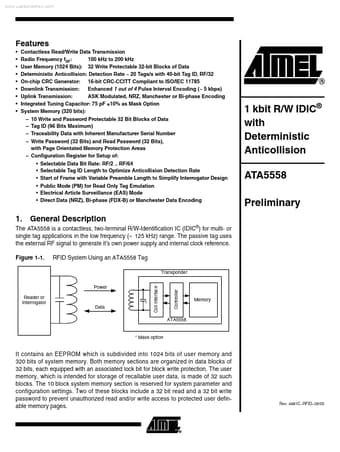

* Contactless Read/Write Data Transmission Radio Frequency fRF: 100 kHz to 200 kHz User Memory (1024 Bits): 32 Write Protectable 32-bit Blocks of Data Deterministic Anticollision: Detection Rate ~ 20 Tags/s with

ATA5558 Applications

* in the low frequency (≈ 125 kHz) range. The passive tag uses the external RF signal to generate it’s own power supply and internal clock reference. Figure 1-1. RFID System Using an ATA5558 Tag Transponder Coil interface Power Reader or Base station Interrogator Data Controller
* Memory ATA55
