ATA5567 - Multifunctional 330-bit Read/Write RF Identification IC

ATA5567 Description

.
The ATA5567 is a contactless R/W IDentification IC (IDIC®) for applications in the 125-kHz frequency range.

ATA5567 Features

* Contactless Read/Write Data Transmission Radio Frequency fRF from 100 kHz to 150 kHz e5550, e5551, T5557 Binary Compatible Extended Mode Small Size, Configurable for ISO/IEC 11784/785 Compatibility 75 pF On-chi

ATA5567 Applications

* in the 125-kHz frequency range. A single coil, connected to the chip, serves as the IC’s power supply and bi-directional communication interface. The antenna and chip www. DataSheet4U. com together form a transponder or tag. The on-chip 330-bit EEPROM (10 blocks, 33 bits each) can be read and written

📥 Download Datasheet

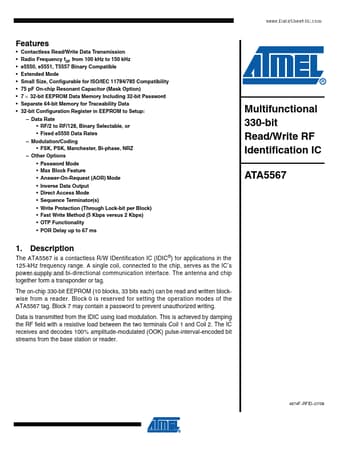

Preview of ATA5567 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ATA5567
Manufacturer
ATMEL Corporation
File Size
694.12 KB
Datasheet
ATA5567_ATMELCorporation.pdf
Description
Multifunctional 330-bit Read/Write RF Identification IC
