ATA5575M1 - Read/Write LF RFID IDIC 100 kHz to 150 kHz

ATA5575M1 Description

ATA5575M1 Read/Write LF RFID IDIC 100kHz to 150kHz DATASHEET .
The Atmel® ATA5575M1 is a contactless read/write identification IC (IDIC®) for applications in the 100-kHz to 150-kHz frequency band.

ATA5575M1 Features

* Contactless power supply
* Contactless read/write data transmission
* Radio frequency fRF from 100kHz to 150kHz
* 128-bit EEPROM user memory: 16Bytes (8Bits each)
* 8-bit configuration memory
* High Q-antenna tolerance due to built-in options
* Access control applicatio

ATA5575M1 Applications

* UNIQUE data format (Manchester, RF/64)
* 40-bit data memory
* 15-bit parity memory
* 9-bit header memory
* On-chip trimmed antenna capacitor
* 330pF ±3%
* 250pF ±3%
* Mega pads 200µm 400µm
* Mega pads 200µm 400µm with 25µm gold bumps for direct coil bonding

📥 Download Datasheet

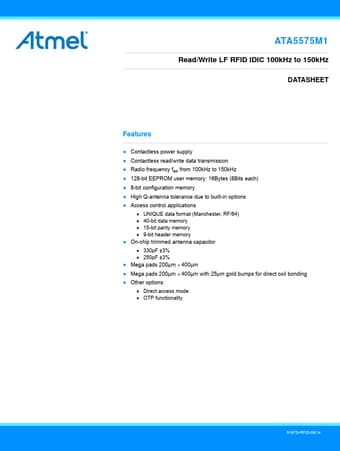

Preview of ATA5575M1 PDF
