AT94K40AL, AT94K05AL - 5K - 40K Gates of AT40K FPGA

Name: AT94K40AL
SKU: AT94K40AL-1179116

ATMEL

The AT94K40AL by ATMEL is a 5K - 40K Gates of AT40K FPGA. Below is the official datasheet preview.

Datasheet Details

Part number	AT94K40AL, AT94K05AL
Manufacturer	ATMEL
File Size	1.67 MB
Description	5K - 40K Gates of AT40K FPGA
Datasheet	AT94K05AL-ATMEL.pdf
Note	This datasheet PDF includes multiple part numbers: AT94K40AL, AT94K05AL. Please refer to the document for exact specifications by model.

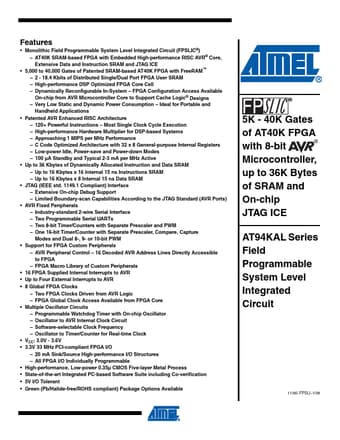

Additional preview pages of the AT94K40AL datasheet.

Monolithic Field Programmable System Level Integrated Circuit (FPSLIC®).
AT40K SRAM-based FPGA with Embedded High-performance RISC AVR® Core, Extensive Data and Instruction SRAM and JTAG ICE.
5,000 to 40,000 Gates of Patented SRAM-based AT40K FPGA with FreeRAM™.
2 - 18.4 Kbits of Distributed Single/Dual Port FPGA User SRAM.
High-performance DSP Optimized FPGA Core Cell.
Dynamically Reconfigurable In-System.
FPGA Configuration Access.
