AT94S05AL - Secure 5K - 40K Gates of AT40K FPGA

Name: AT94S05AL
SKU: AT94S05AL-1179117

ATMEL

The AT94S05AL by ATMEL is a Secure 5K - 40K Gates of AT40K FPGA. Below is the official datasheet preview.

Datasheet Details

Part number	AT94S05AL
Manufacturer	ATMEL
File Size	428.65 KB
Description	Secure 5K - 40K Gates of AT40K FPGA
Datasheet	AT94S05AL-ATMEL.pdf

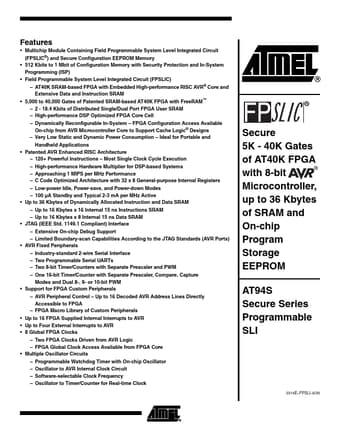

Additional preview pages of the AT94S05AL datasheet.

Multichip Module Containing Field Programmable System Level Integrated Circuit (FPSLIC®) and Secure Configuration EEPROM Memory.
512 Kbits to 1 Mbit of Configuration Memory with Security Protection and In-System Programming (ISP).
Field Programmable System Level Integrated Circuit (FPSLIC).
AT40K SRAM-based FPGA with Embedded High-performance RISC AVR® Core and Extensive Data and Instruction SRAM.
5,000 to 40,000 Gates of Patented SRAM-based AT40K FP.
