STJ001SF Datasheet - AUK

STJ001SF P-channel Trench MOSFET

STJ001SF Features

* Low VGS(th) : VGS(th)=-0.6~-1.4V

* Small footprint due to small package

* Low RDS (ON) : RDS (ON)= 68mΩ (Typ.) www.DataSheet4U.com Ordering Information Type NO. STJ001SF Marking J01 Package Code SOT-23F Outline Dimensions unit : mm 2.30~2.50 1.50~1.70 1 2.80~3.00 1.90

STJ001SF_AUK.pdf

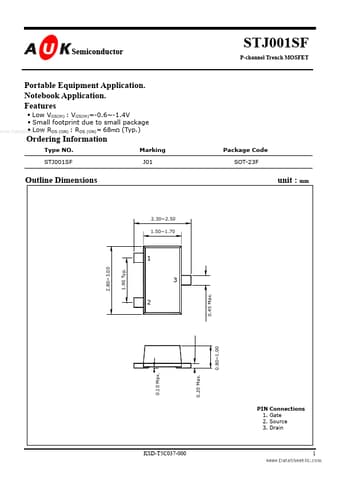

STJ001SF Datasheet Preview — Preview of STJ001SF PDF

Datasheet Details

Part number:

STJ001SF

Manufacturer:

AUK

File Size:

483.50 KB

Description:

P-channel trench mosfet.
