STJ009 - P-channel Trench MOSFET

Name: STJ009
SKU: STJ009-625805

AUK

The STJ009 by AUK is a P-channel Trench MOSFET. Below is the official datasheet preview.

Datasheet Details

Part number	STJ009
Manufacturer	AUK
File Size	372.33 KB
Description	P-channel Trench MOSFET
Datasheet	STJ009_AUK.pdf

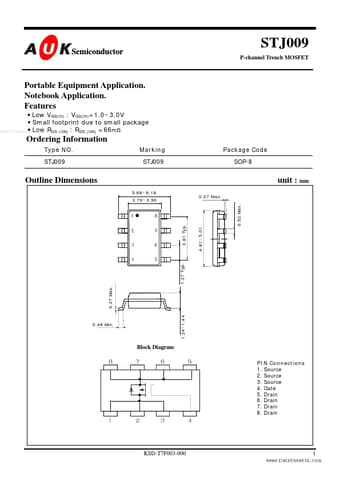

Additional preview pages of the STJ009 datasheet.

Low VGS(th) : VGS(th)=1.0~3.0V.
Small footprint due to small package.
Low RDS (ON) : RDS (ON) =66mΩ www. DataSheet4U. com Ordering Information Type NO. STJ009 Marking STJ009 Package Code SOP-8 Outline Dimensions 5.88~6.18 3.70~3.90 0.27 Max. 0.52 Max. unit : mm 3.81 Typ. 0.27 Max. 0.46 Min. Block Diagram PIN Connections 1. Source 2. Source 3. Source 4. Gate 5. Drain 6. Drain 7. Drain 8. Drain KSD-T7F003-000 1.24~1.44 1.27 Typ. 4.81~5.01 1 STJ009 Absolute maxi.
