STJN-4 - SMD Super-Thin Tact Switch

Name: STJN-4
SKU: STJN-4-625811

Bourns Electronic Solutions

The STJN-4 by Bourns Electronic Solutions is a SMD Super-Thin Tact Switch. Below is the official datasheet preview.

Datasheet Details

Part number	STJN-4
Manufacturer	Bourns Electronic Solutions
File Size	190.71 KB
Description	SMD Super-Thin Tact Switch
Datasheet	STJN-4_BournsElectronicSolutions.pdf

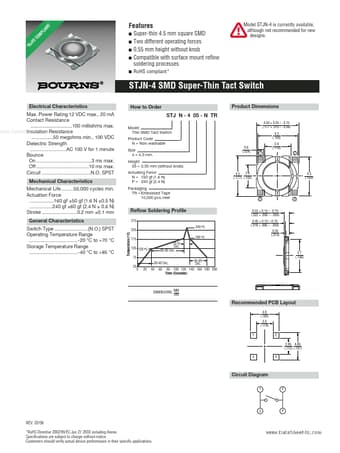

Additional preview pages of the STJN-4 datasheet.

Super-thin 4.5 mm square SMD Two different operating forces 0.55 mm height without knob Compatible with surface mount reflow soldering processes RoHS compliant.
R oH S CO Model STJN-4 is currently available, although not recommended for new designs. M NT STJN-4 SMD Super-Thin Tact Switch Electrical Characteristics Max. Power Rating 12 VDC max. , 20 mA Contact Resistance 100 milliohms max. www. DataSheet4U. com Insulation Resistance 50 megohms min. , 10.
