STJ828UF P-Channel Enhancement-Mode MOSFET

STJ828UF Description

Semiconductor STJ828UF P-Channel Enhancement-Mode MOSFET .
High speed switching application. Analog switch application. -2. Low threshold voltage.

STJ828UF Features

* -2.5V Gate drive.
* Low threshold voltage : Vth = -0.5~ -1.5V. www. DataSheet4U. com
* High speed. Ordering Information Type NO. STJ828UF Marking J28 Package Code SOT-323F Outline Dimensions unit : mm 2.1±0.1 0.30~0.40 0.70-0.15 0~0.1 +0.1 1.30±0.1 1.30 BSC 2.0±0.1 1

📥 Download Datasheet

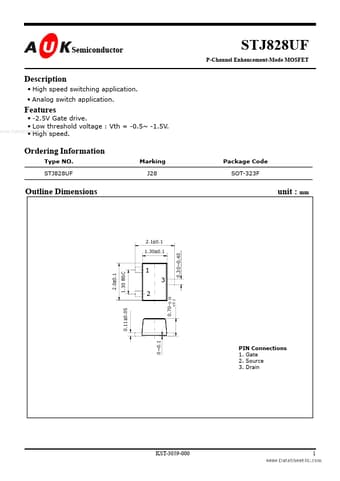

Preview of STJ828UF PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
STJ828UF
Manufacturer
AUK
File Size
333.47 KB
Datasheet
STJ828UF_AUK.pdf
Description
P-Channel Enhancement-Mode MOSFET
