STJN-5 - SMD Thin Tact Switch

Name: STJN-5
SKU: STJN-5-625812

Bourns Electronic Solutions

The STJN-5 by Bourns Electronic Solutions is a SMD Thin Tact Switch. Below is the official datasheet preview.

Datasheet Details

Part number	STJN-5
Manufacturer	Bourns Electronic Solutions
File Size	173.05 KB
Description	SMD Thin Tact Switch
Datasheet	STJN-5_BournsElectronicSolutions.pdf

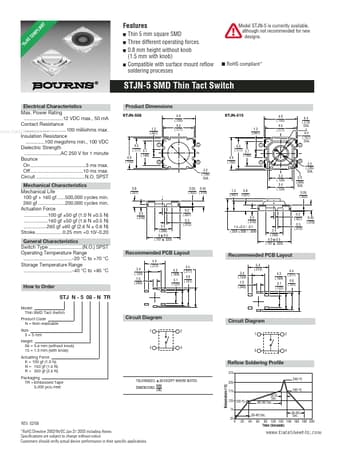

Additional preview pages of the STJN-5 datasheet.

Thin 5 mm square SMD Three different operating forces 0.8 mm height without knob (1.5 mm with knob) Compatible with surface mount reflow soldering processes Model STJN-5 is currently available, although not recommended for new designs.
R oH S CO M NT.
RoHS compliant.
STJN-5 SMD Thin Tact Switch Electrical Characteristics Max. Power Rating 12 VDC max. , 50 mA Contact Resistance 100 milliohms max. www. DataSheet4U. com Insulation Resistance 100 megohms.
