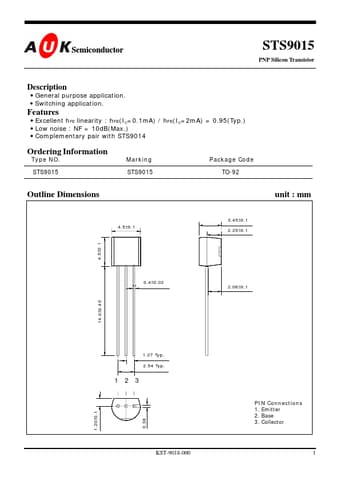

STS9015 Datasheet, Transistor, AUK

STS9015 Features

• Transistor
• Excellent hFE linearity : hFE(IC=0.1mA) / hFE(IC=2mA) = 0.95(Typ.)
• Low noise : NF = 10dB(Max.)
• Complementary pair with STS9014 Ordering Information Type

PDF File Details

Part number:

STS9015

Manufacturer:

AUK

File Size:

125.60kb

Download:

📄 Datasheet

Description:

Pnp silicon transistor.

General purpose application.

Switching application. Features

Excellent hFE linearity : hFE(IC=0.1mA)
