STS9NH3LL Datasheet, Mosfet, ST Microelectronics

STS9NH3LL Features

  • Mosfet Type STS9NH3LL
  • VDSS 30V RDS(on) 0.022Ω ID 9A Optimal RDS(on) x Qg trade-off @ 4.5V Conduction losses reduced Switching losses reduced SO-8 Description

PDF File Details

Part number:

STS9NH3LL

Manufacturer:

STMicroelectronics ↗

File Size:

347.82kb

Download:

📄 Datasheet

Description:

N-channel power mosfet. This application specific Power MOSFET is the third generation of STMicroelectronics unique “single feature size™” strip-based proces

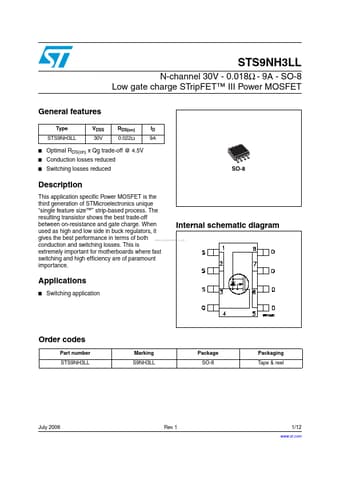

Datasheet Preview: STS9NH3LL 📥 Download PDF (347.82kb)
Page 2 of STS9NH3LL Page 3 of STS9NH3LL

STS9NH3LL Application

  • Applications
  • Switching application Order codes Part number STS9NH3LL Marking S9NH3LL Package SO-8 Packaging Tape & reel July 2006 Rev
