ACPM-7886

TD-SCDMA Power Amplifier

ACPM-7886 Features

* Operating frequency: 2010 - 2025 MHz 28 dBm Linear Output Power @ 3.5V High Efficiency 41% PAE Single bias, low quiescent current (50mA) Internal 50 ohm matching networks for both RF input & output

* 3.2 - 4.2 V linear operation

* 4.0

ACPM-7886 General Description

The ACPM-7886 is an amplifier module designed for TD-SCDMA applications in the 2010-2025MHz band. Designed around Avago Technologies’ GaAs Enhancement Mode pHEMT process, the ACPM-7886 offers premium performance in a very small form factor. It is matched to 50 Ohms on the input and output. The ampli.

ACPM-7886 Datasheet (384.98 KB)

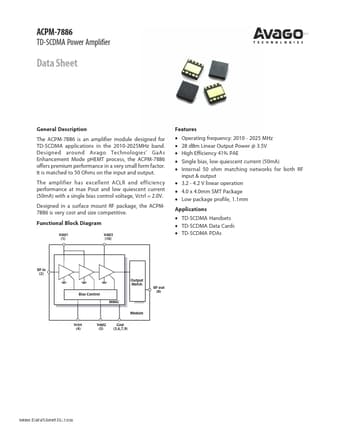

Preview of ACPM-7886 PDF

Datasheet Details

Part number:

ACPM-7886

Manufacturer:

AVAGO TECHNOLOGIES LIMITED

File Size:

384.98 KB

Description:

Td-scdma power amplifier.
