ACPM-7311-BLK Datasheet, Amplifier, AVAGO

ACPM-7311-BLK Features

  • Amplifier
  • Excellent Linearity
  • Low quiescent current
  • High Efficiency PAE at 28dBm: 40.3% PAE at 16dBm: 15.3% PAE at 8d

PDF File Details

Part number:

ACPM-7311-BLK

Manufacturer:

AVAGO

File Size:

929.82kb

Download:

📄 Datasheet

Description:

Power amplifier. The ACPM-7311, a Wide-band Code Division Multiple Access(WCDMA) Power Amplifier (PA), is a fully matched 10-pin surface mount module

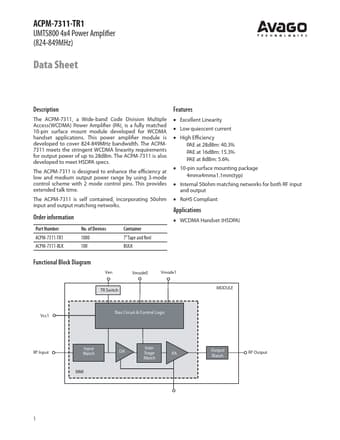

Datasheet Preview: ACPM-7311-BLK 📥 Download PDF (929.82kb)
Page 2 of ACPM-7311-BLK Page 3 of ACPM-7311-BLK

ACPM-7311-BLK Application

  • Applications This power amplifier module is developed to cover 824-849MHz bandwidth. The ACPM7311 meets the stringent WCDMA linearity requirements
