ACPM-7833 Datasheet, Module, Hewlett-Packard

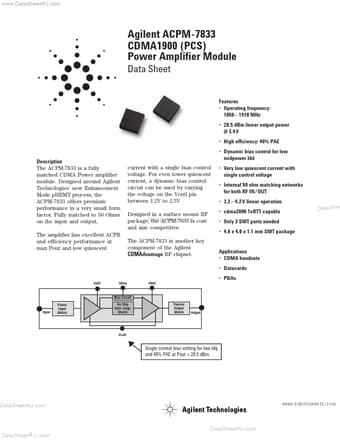

ACPM-7833 Features

• Module
• Operating frequency: 1850
    – 1910 MHz
• 28.5 dBm linear output power @ 3.4 V
• High efficiency: 40% PAE
• Dynamic bias control for low m

PDF File Details

Part number:

ACPM-7833

Manufacturer:

Hewlett-Packard

File Size:

468.01kb

Download:

📄 Datasheet

Description:

Cdma1900 (pcs) power amplifier module. The ACPM-7833 is a fully matched CDMA Power amplifier module. Designed around Agilent Technologies’ new Enhancement Mode pHEMT proces

ACPM-7833 Application

• Applications
• CDMA handsets
• Datacards
• PDAs Vdd1 Vbias Vdd2 Bias Circuit Power Input Match On Chip Inter-stage Match
