ACPM-7868

5 x 5 mm Power Amplifier Module Linear Quad-Band GSM/EDGE

ACPM-7868 Features

* x Quad Band GSM / Linear EDGE PA x Small Size, Low Profile (5 x 5 x 0.9 mm) x Extremely low quiescent current x Digital power mode control for higher efficiency x 4 modes for Low Band (HPM, MPM, LPM, and ULPM) x 3 modes for High Band (HPM, LPM and ULPM) x 16-pin surface mounting package x Internal 5

ACPM-7868 General Description

The ACPM-7868 is a linear quad-band / multi-mode power amplifier module for both GMSK and 8-PSK modulation schemes. There are two amplifier chains, one is to support GSM850/900 bands, and the other is to support DCS1800/ PCS1900 bands. CoolPAM technology, which is Avago Technologies’ Power Amplifier.

ACPM-7868 Datasheet (244.13 KB)

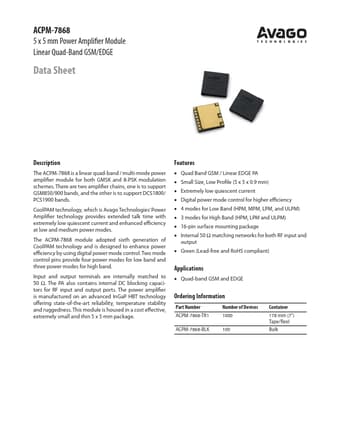

Preview of ACPM-7868 PDF

Datasheet Details

Part number:

ACPM-7868

Manufacturer:

AVAGO

File Size:

244.13 KB

Description:

5 x 5 mm power amplifier module linear quad-band gsm/edge.
