ACPM-7813

CDMA/AMPS Power Amplifier Module

ACPM-7813 Features

* Operating frequency: 824

* 849 MHz

* 28.5 dBm linear output power @ 3.4 V

* High efficiency: 40% PAE

* Dynamic bias control for low midpower Idd current with a single bias control voltage. For even lower quiescent current, a dynamic bias control circuit can

ACPM-7813 General Description

The ACPM-7813 is a fully matched CDMA Power amplifier module. Designed around Agilent Technologies’ new Enhancement Mode pHEMT process, the ACPM-7813 offers premium performance in a very small form factor. Fully matched to 50 Ohms on the input and output. The amplifier has excellent ACPR and efficie.

ACPM-7813 Datasheet (462.42 KB)

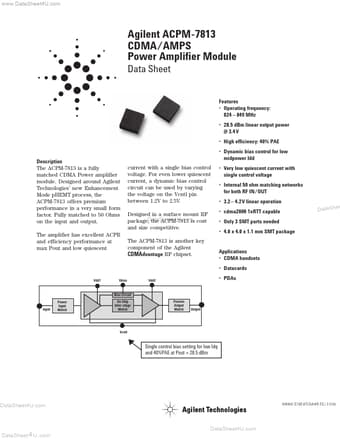

Preview of ACPM-7813 PDF

Datasheet Details

Part number:

ACPM-7813

Manufacturer:

Hewlett-Packard

File Size:

462.42 KB

Description:

Cdma/amps power amplifier module.
