ACPM-7311-OR1

UMTS800 4x4 Power Amplifier Module

ACPM-7311-OR1 Features

* Excellent Linearity

* Low quiescent current

* High Efficiency PAE at 28dBm: 39.8% PAE at 16dBm: 15.9% PAE at 8dBm: 5.8%

* 10-pin surface mounting package (4mmx4mmx1.1mm)

* Internal 50ohm matching networks for both RF input and output

ACPM-7311-OR1 General Description

The ACPM-7311, a Wide-band Code Division Multiple Access (WCDMA) Power Amplifier (PA), is a fully matched 10-pin surface mount module developed for WCDMA handset applications. This power amplifier module operates in the 824-849MHz bandwidth. The ACPM-7311 meets the stringent WCDMA linearity requirem.

ACPM-7311-OR1 Datasheet (620.84 KB)

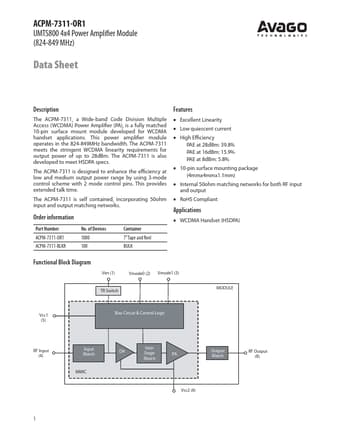

Preview of ACPM-7311-OR1 PDF

Datasheet Details

Part number:

ACPM-7311-OR1

Manufacturer:

AVAGO

File Size:

620.84 KB

Description:

Umts800 4x4 power amplifier module.
