ACPM-7331-OR1 4x4 Power Amplifier

AVAGO

Description

ACPM-7331-OR1 UMTS1900 4x4 Power Amplifier Module (1850-1910 MHz) Data Sheet .
The ACPM-7331, a Wide-band Code Division Multiple Access (WCDMA) Power Amplifier (PA), is a fully matched 10-pin surface mount module developed for WC.

📥 Download Datasheet

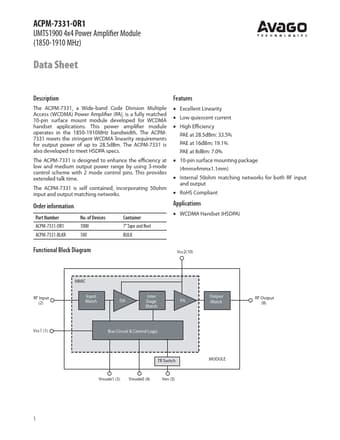

ACPM-7331-OR1 Datasheet Preview — Preview of ACPM-7331-OR1 PDF

Datasheet Specifications

Part number: ACPM-7331-OR1
Manufacturer: AVAGO
File Size: 677.14 KB
Datasheet: ACPM-7331-OR1-AVAGO.pdf
Description: 4x4 Power Amplifier

Features

* Excellent Linearity
* Low quiescent current
* High Efficiency PAE at 28.5dBm: 33.5% PAE at 16dBm: 19.1% PAE at 8dBm: 7.0%
* 10-pin surface mounting package (4mmx4mmx1.1mm)
* Internal 50ohm matching networks for both RF input and output
* RoHS C

Applications

* This power amplifier module operates in the 1850-1910MHz bandwidth. The ACPM7331 meets the stringent WCDMA linearity requirements for output power of up to 28.5dBm. The ACPM-7331 is also developed to meet HSDPA specs. The ACPM-7331 is designed to enhance the efficiency at low and medium output powe
