ACPM-7331-TR1 Power Amplifier Module

AVAGO

Description

UMTS1900 4x4 Power Amplifier (1850-1910MHz) ACPM-7331-TR1 Data Sheet .
The ACPM-7331, a Wide-band Code Division Multiple Access(WCDMA) Power Amplifier (PA), is a fully matched 10-pin surface mount module developed for WCD.

📥 Download Datasheet

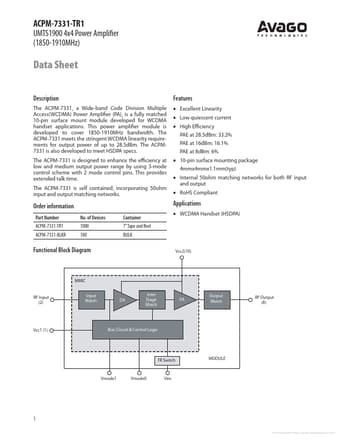

ACPM-7331-TR1 Datasheet Preview — Preview of ACPM-7331-TR1 PDF

Datasheet Specifications

Part number: ACPM-7331-TR1
Manufacturer: AVAGO
File Size: 1.03 MB
Datasheet: ACPM-7331-TR1_AVAGO.pdf
Description: Power Amplifier Module

Features

* Excellent Linearity
* Low quiescent current
* High Efficiency PAE at 28.5dBm: 33.2% PAE at 16dBm: 16.1% PAE at 8dBm: 6%
* 10-pin surface mounting package 4mmx4mmx1.1mm(typ)
* Internal 50ohm matching networks for both RF input and output
* RoHS

Applications

* This power amplifier module is developed to cover 1850-1910MHz bandwidth. The ACPM-7331 meets the stringent WCDMA linearity requirements for output power of up to 28.5dBm. The ACPM7331 is also developed to meet HSDPA specs. The ACPM-7331 is designed to enhance the efficiency at low and medium outpu
