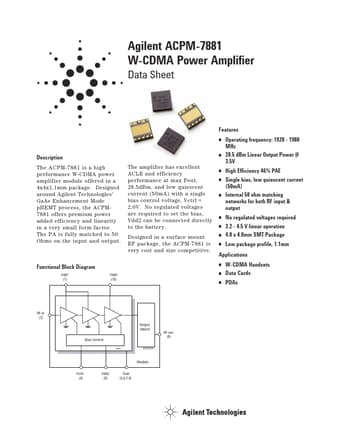

ACPM-7881 Datasheet, Amplifier, Agilent

ACPM-7881 Features

• Amplifier
• Operating frequency: 1920 - 1980 MHz
• 28.5 dBm Linear Output Power @ 3.5V
• High Efficiency 46% PAE
• Single bias, low quiescent current (50mA)
<

PDF File Details

Part number:

ACPM-7881

Manufacturer:

Agilent

File Size:

217.33kb

Download:

📄 Datasheet

Description:

W-cdma power amplifier. The ACPM-7881 is a high performance W-CDMA power amplifier module offered in a 4x4x1.1mm package. Designed around Agilent Technologie

ACPM-7881 Application

• Applications
• W-CDMA Handsets
• Data Cards
• PDAs RF in (2) Bias Control MMIC Output Match Module Vctrl Vdd2 Gnd (
