ACPF-7002 High Rejection Tx Filter

📥 Download Datasheet  Datasheet Preview Page 1

Description

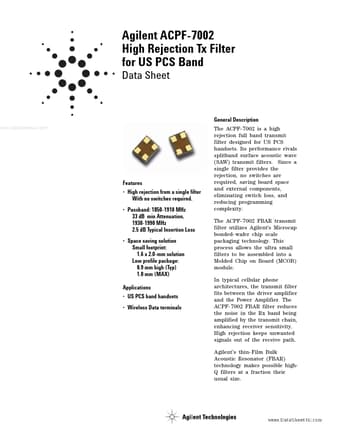

Agilent ACPF-7002 High Rejection Tx Filter for US PCS Band Data Sheet General .
www. High rejection from a single filter With no switches required. Passband: 1850-1910 MHz 33 dB min Att.

📥 Download Datasheet

Preview of ACPF-7002 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
ACPF-7002
Manufacturer
Agilent
File Size
350.48 KB
Datasheet
ACPF-7002_Agilent.pdf
Description
High Rejection Tx Filter

Features

* High rejection from a single filter With no switches required.
* Passband: 1850-1910 MHz 33 dB min Attenuation, 1930-1990 MHz 2.5 dB Typical Insertion Loss
* Space saving solution Small footprint: 1.6 x 2.0-mm solution Low profile package: 0.9 mm high (Typ) 1.0 mm (MAX) App

Applications

* US PCS band handsets
* Wireless Data terminals The ACPF- 7002 is a high rejection full band transmit filter designed for US PCS handsets. Its performance rivals splitband surface acoustic wave (SAW) transmit filters. Since a single filter provides the rejection, no switches are re
