ACPF-7124

ISM Bandpass Filter

ACPF-7124 Features

* 50 Ω Input/Output

* No external matching required

* Low Insertion Loss, High Interference Rejection - Enables concurrent use of other 2.5 GHz Bands

* Subminiature Size - 1.1 x 1.4 mm Footprint - 0.80 mm Max Height

* High Power Rating - +27 dBm Abs Ma

ACPF-7124 General Description

The Avago ACPF-7124 is a miniaturized Bandpass Filter designed for use in the 2.4 GHz Industrial, Scientific and Medical (ISM) band. The ACPF-7124 is designed to enable concurrent operation of Wireless LAN and Bluetooth applications that coexist with other wireless standards, such as 2.5 GHz WiMAX, .

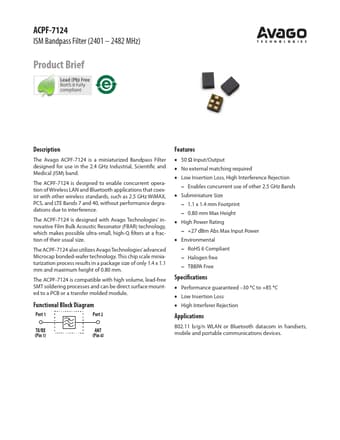

ACPF-7124 Datasheet (103.12 KB)

Preview of ACPF-7124 PDF

Datasheet Details

Part number:

ACPF-7124

Manufacturer:

AVAGO

File Size:

103.12 KB

Description:

Ism bandpass filter.
