ACP2766

Boost WLED Driver

ACP2766 Features

* open LED protection function that can disable the chip to prevent the output voltage from exceeding voltage rating during open LED conditions. . ◤APPLICATION CIRCUIT ◤FEATURES

* 2.7V to 5.5V Input Voltage Range

* 200mV Reference Feedback Voltage

* 1.2MHz Fixed Frequency

* Internal 3

ACP2766 General Description

The ACP2766 is a step-up DC-DC converter which operating as current source to drive white LEDs. The light intensity of LEDs is proportional to the current passing through them. The default white LEDs current is set with the external resistor, and the feedback voltage reference is set to 200mV. Durin.

ACP2766 Datasheet (450.20 KB)

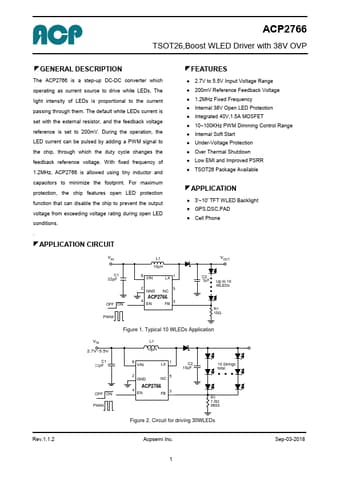

Preview of ACP2766 PDF

Datasheet Details

Part number:

ACP2766

Manufacturer:

Acpsemi

File Size:

450.20 KB

Description:

Boost wled driver.
